Implementing the “knowledge” package

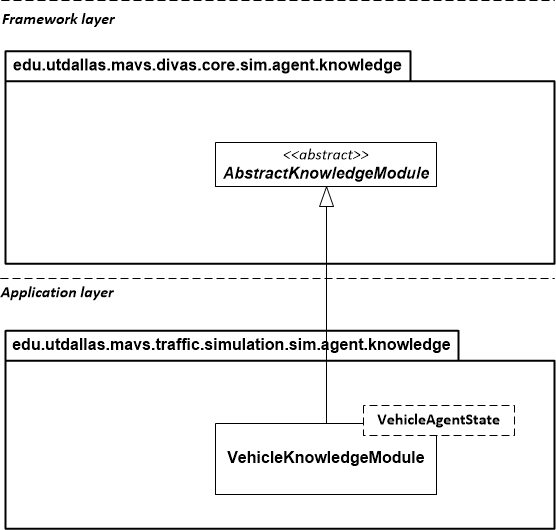

The Knowledge Module represents the memory of a vehicle agent. It stores the knowledge a vehicle agent knows about itself. In addition, it stores external knowledge acquired by the vehicle agent through its perception sensors or learned by combining the knowledge acquired by various perception sensors. The following figure provides a graphical illustration for the type of knowledge stored in a vehicle agent’s knowledge module.

stimulus

Below, we provide a detailed description for each of the knowledge elements illustrated in the figure above:

“CAR_OFFSET”: The head-to-bumper distance between two consecutive vehicles.
“currentStreetTile”: The street tile at which the vehicle is currently located. In our implementation of the traffic simulator, we assume that a road segment is made up of a group of street tiles (detailed information about street tiles is provided at the environment implementation). The current street tile information is used to compute travel paths within the “streetGraph” from a vehicle’s current location to a specified tile destination.
“streetGraph”: A graph data structure that represents the traffic map network. Each street tile is considered as a node in the streetGraph.
“currentGoalTile”: A goal street tile that represents a vehicle agent’s destination.
“currentGoalPos”: The position of the goal street tile.
“desiredSpeed”: The desired speed at which the vehicle agent travels. In the current implementation, we assume that a vehicle agent has a fixed speed.
“heading”: The vehicle’s heading during the current simulation cycle.
“previousHeading”: The vehicle’s heading during the past simulation cycle.
“previousVertexPos”: The position of the previous street tile at which a vehicle agent was located.
“currentGoalDegree”: The degree of the goal street tile (i.e. the number of edges connected to the goal vertex).
“streetTiles”: A map that contains information about all street tiles perceived by the vehicle agent.
“agents”: A map that contains information (id, position, speed, etc) about other vehicle agents perceived by the current vehicle.
“xMargin”: A shift distance between the center of the goal street tile and a parallel point on the X-axis that represents a vehicle goal position.
“zMargin”: A shift distance between the center of the goal street tile and a parallel point on the Z-axis that represents a vehicle goal position.
“waitTime”: The time spent by the vehicle agent waiting on an intersection without moving.

Implementation Steps:

Inside the “knowledge” package create a class named “VehicleKnowledgeModule” that extends the “AbstractKnowledgeModule” class. This class represents a simple implementation of a vehicle agent’s knowledge module. The figure below shows the “knowledge” package diagram.

The code below describes the full implementation of the vehicle agent’s knowledge module.

package edu.utdallas.mavs.traffic.simulation.sim.agent.knowledge;

import java.util.ArrayList;
import java.util.Collections;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import java.util.Set;

import org.jgrapht.UndirectedGraph;
import org.jgrapht.graph.DefaultEdge;
import org.jgrapht.graph.SimpleGraph;

import com.jme3.math.Vector3f;

import edu.utdallas.mavs.divas.core.sim.agent.interaction.perception.data.CombinedReasonedData;
import edu.utdallas.mavs.divas.core.sim.agent.knowledge.AbstractKnowledgeModule;
import edu.utdallas.mavs.divas.core.sim.agent.knowledge.external.EventKnowledge;
import edu.utdallas.mavs.divas.core.sim.agent.knowledge.external.EventPropertyKnowledge;
import edu.utdallas.mavs.divas.core.sim.agent.knowledge.internal.Goal;
import edu.utdallas.mavs.divas.core.sim.common.state.AgentState;
import edu.utdallas.mavs.divas.core.sim.common.state.EnvObjectState;
import edu.utdallas.mavs.traffic.simulation.sim.common.state.VehicleAgentState;

public class VehicleKnowledgeModule extends AbstractKnowledgeModule<VehicleAgentState>
{

    private static final long                            serialVersionUID    = 1L;
    public static final int                              CAR_OFFSET          = 5;
    private UndirectedGraph<EnvObjectState, DefaultEdge> streetGraph;
    private EnvObjectState                               currentStreetTile;
    private EnvObjectState                               currentGoalTile;
    public float                                         desiredSpeed        = 5;
    private Vector3f                                     heading;
    private Vector3f                                     previousHeading;
    private Vector3f                                     previousVertexPos;
    private Vector3f                                     currentGoalPos;
    private int                                          currentGoalDegree;
    private Map<Integer, EnvObjectState>                 streetTiles         = new HashMap<Integer, EnvObjectState>();
    private Map<Integer, AgentState>                     agents              = new HashMap<Integer, AgentState>();
    private float                                        xMargin             = 0;
    private float                                        zMargin             = 0;
    private Goal                                         finalGoal           = null;
    private int                                          waitTime            = 0;


    public VehicleKnowledgeModule(VehicleAgentState state)
    {
        super(state);
        streetGraph = new SimpleGraph<EnvObjectState, DefaultEdge>(DefaultEdge.class);
    }

    public void addStreetTile(EnvObjectState street)
    {
        streetGraph.addVertex(street);
        for(EnvObjectState st : streetGraph.vertexSet())
        {
            if(((street.getPosition().getX() == st.getPosition().getX()) && (Math.abs(street.getPosition().getZ() - st.getPosition().getZ()) <= 2 * street.getScale().getZ()))

            || (street.getPosition().getZ() == st.getPosition().getZ()) && (Math.abs(street.getPosition().getX() - st.getPosition().getX()) <= 2 * street.getScale().getX()))
            {
                if((!streetGraph.containsEdge(street, st)) && (street.getID() != st.getID()))
                {
                    streetGraph.addEdge(street, st);
                }
            }
        }
    }

    public Vector3f getNextGoal()
    {
        if(getPreviousHeading() == null)
        {
            setPreviousHeading(new Vector3f(0f, 0f, 0f));
        }

        if(previousVertexPos == null)
        {
            previousVertexPos = currentStreetTile.getPosition();
        }

        if(currentGoalTile == null)
        {
            currentGoalTile = currentStreetTile;
        }
        Iterator<EnvObjectState> iter;
        List<EnvObjectState> neighbourTiles = new ArrayList<EnvObjectState>();

        Set<DefaultEdge> edges = streetGraph.edgesOf(currentGoalTile);
        for(DefaultEdge e : edges)
        {
            EnvObjectState sourceVertex = streetGraph.getEdgeSource(e);
            EnvObjectState targetVertex = streetGraph.getEdgeTarget(e);
            EnvObjectState neighbourVertex = null;
            if(sourceVertex == currentGoalTile)
            {
                neighbourVertex = targetVertex;
            }
            else
            {
                neighbourVertex = sourceVertex;
            }

            neighbourTiles.add(neighbourVertex);
        }

        Collections.shuffle(neighbourTiles);
        iter = neighbourTiles.iterator();

        EnvObjectState vertex;
        while(iter.hasNext())
        {
            vertex = iter.next();
            Vector3f adjustedGoalPos = adjustGoal(vertex.getPosition());

            if(currentGoalPos != null)
            {
                if(((getHeading().equals(new Vector3f(0, 0, -1)) && vertex.getPosition().getZ() <= currentGoalPos.getZ())
                        || (getHeading().equals(new Vector3f(0, 0, 1)) && vertex.getPosition().getZ() >= currentGoalPos.getZ())
                        || (getHeading().equals(new Vector3f(-1, 0, 0)) && vertex.getPosition().getX() <= currentGoalPos.getX())
						|| (getHeading().equals(new Vector3f(1, 0, 0)) && vertex.getPosition().getX() >= currentGoalPos.getX())))
                {
                    previousVertexPos = currentGoalPos;
                    adjustHeading(adjustedGoalPos, vertex.getPosition());
                    currentGoalPos = vertex.getPosition();
                    currentGoalDegree = streetGraph.degreeOf(vertex);
                    Vector3f adjustGoalMargin = adjustGoalMargin(adjustedGoalPos, vertex.getPosition());
                    currentStreetTile = currentGoalTile;
                    currentGoalTile = vertex;
                    return adjustGoalMargin;
                }
            }
            else
            {
                getFirstTimeHeading();
                currentStreetTile = currentGoalTile;
                return adjustGoalMargin(adjustGoal(currentGoalPos), vertex.getPosition());
            }
        }

        return null;
    }

    // To make the vehicle preserve the lane it uses
    private Vector3f adjustGoalMargin(Vector3f goal, Vector3f streetTileCeter)
    {
        if(getPreviousHeading() == null)
        {
            setPreviousHeading(new Vector3f(0f, 0f, 0f));
        }
        int sign = 1;
        if(Math.abs(getHeading().getZ()) == 1 && getPreviousHeading().equals(getHeading()))
        {
            Vector3f marginGoal = new Vector3f(goal.getX(), goal.getY(), (streetTileCeter.getZ() + getHeading().getZ() * -15 + -getzMargin() * getHeading().getX() * -1));
            return marginGoal;
        }

        if(Math.abs(getHeading().getX()) == 1 && getPreviousHeading().equals(getHeading()))
        {
            Vector3f marginGoal = new Vector3f((streetTileCeter.getX() + getHeading().getX() * -15 + getxMargin() * getHeading().getZ() * -1), goal.getY(), goal.getZ());
            return marginGoal;
        }

        if(Math.abs(getHeading().getX()) == 1 && !getPreviousHeading().equals(getHeading()))
        {
            if((getPreviousHeading().getZ() == 1 && getHeading().getX() == 1) || (getPreviousHeading().getZ() == -1 && getHeading().getX() == -1))
            {
                sign = 1;
            }
            else if((getPreviousHeading().getZ() == 1 && getHeading().getX() == -1) || (getPreviousHeading().getZ() == -1 && getHeading().getX() == 1))
            {
                sign = -1;
            }
            float z = sign * (previousVertexPos.getX() - getSelf().getPosition().getX());
            Vector3f marginGoal = new Vector3f((streetTileCeter.getX() + getHeading().getX() * -10 + getxMargin() * getHeading().getZ() * -1), goal.getY(), streetTileCeter.getZ() + z);
            return marginGoal;
        }

        if(Math.abs(getHeading().getZ()) == 1 && !getPreviousHeading().equals(getHeading()))
        {
            if((getPreviousHeading().getX() == 1 && getHeading().getZ() == 1) || (getPreviousHeading().getX() == -1 && getHeading().getZ() == -1))
            {
                sign = 1;
            }
            else if((getPreviousHeading().getX() == 1 && getHeading().getZ() == -1) || (getPreviousHeading().getX() == -1 && getHeading().getZ() == 1))
            {
                sign = -1;
            }
            float x = sign * (previousVertexPos.getZ() - getSelf().getPosition().getZ());
            Vector3f marginGoal = new Vector3f(streetTileCeter.getX() + x, goal.getY(), (streetTileCeter.getZ() + getHeading().getZ() * -10 + getzMargin() * getHeading().getX() * -1));
            return marginGoal;
        }

        return null;
    }

    // makes the goal parallel to current position
    private Vector3f adjustGoal(Vector3f goal)
    {
        Vector3f originalGoalPosition;
        if(currentGoalPos == null)
        {
            originalGoalPosition = getSelf().getPosition();
        }
        else
        {
            originalGoalPosition = currentGoalPos;
        }

        if((originalGoalPosition.getX() >= goal.getX() - 10) && (originalGoalPosition.getX() <= goal.getX() + 10))
        {
            return new Vector3f(getSelf().getPosition().getX(), goal.getY(), goal.getZ());
        }
        if((originalGoalPosition.getZ() >= goal.getZ() - 10) && (originalGoalPosition.getZ() <= goal.getZ() + 10))
        {
            return new Vector3f(goal.getX(), goal.getY(), getSelf().getPosition().getZ());
        }

        return null;
    }

    private void adjustHeading(Vector3f goal, Vector3f goalStreetTile)
    {
        setPreviousHeading(getHeading());

        if((getSelf().getPosition().getX() == goal.getX()) && (getSelf().getPosition().getZ() < goal.getZ()))
        {
            setHeading(new Vector3f(0f, 0f, 1f));
            setxMargin(Math.abs(goal.getX() - goalStreetTile.getX()));
            setzMargin(0);
        }
        else if((getSelf().getPosition().getX() == goal.getX()) && (getSelf().getPosition().getZ() > goal.getZ()))
        {
            setHeading(new Vector3f(0f, 0f, -1f));
            setxMargin(Math.abs(goal.getX() - goalStreetTile.getX()));
            setzMargin(0);
        }
        else if((getSelf().getPosition().getZ() == goal.getZ()) && (getSelf().getPosition().getX() < goal.getX()))
        {
            setHeading(new Vector3f(1f, 0f, 0f));
            setxMargin(0);
            setzMargin(Math.abs(goal.getZ() - goalStreetTile.getZ()));
        }
        else if((getSelf().getPosition().getZ() == goal.getZ()) && (getSelf().getPosition().getX() > goal.getX()))
        {
            setHeading(new Vector3f(-1f, 0f, 0f));
            setxMargin(0);
            setzMargin(Math.abs(goal.getZ() - goalStreetTile.getZ()));
        }

    }

    @Override
    public void addAgent(AgentState agent)
    {
        agents.put(agent.getID(), agent);
    }

    @Override
    public void addEnvObj(EnvObjectState envObj)
    {
        if(!streetTiles.containsKey(envObj.getID()))
        {
            if((envObj.getType().equals("Streets")) || (envObj.getType().equals("road")) || (envObj.getType().equals("street")) || (envObj.getType().equals("road_horizntal"))
                    || (envObj.getType().equals("Cross Walk")))
            {
                streetTiles.put(envObj.getID(), envObj);
                addStreetTile(envObj);

                if(envObj.contains2D(getSelf().getPosition()))
                {
                    currentStreetTile = envObj;
                }

            }
        }
    }

    public void getFirstTimeHeading()
    {
        Set<DefaultEdge> edges = streetGraph.edgesOf(currentStreetTile);
        for(DefaultEdge e : edges)
        {
            EnvObjectState sourceVertex = streetGraph.getEdgeSource(e);
            EnvObjectState targetVertex = streetGraph.getEdgeTarget(e);
            EnvObjectState neighbourVertex = null;
            if(sourceVertex == currentStreetTile)
            {
                neighbourVertex = targetVertex;
            }
            else
            {
                neighbourVertex = sourceVertex;
            }

            if(neighbourVertex.getPosition().getX() > currentStreetTile.getPosition().getX() && getSelf().getPosition().getZ() > currentStreetTile.getPosition().getZ())
            {
                setHeading(new Vector3f(1, 0, 0));
                currentGoalPos = neighbourVertex.getPosition();
                currentGoalDegree = streetGraph.degreeOf(neighbourVertex);
                Vector3f laneCenteredPosition = new Vector3f(getSelf().getPosition().getX(), getSelf().getPosition().getY(), currentStreetTile.getPosition().getZ() + 5);
                getSelf().setPosition(laneCenteredPosition);
                currentGoalTile = neighbourVertex;
            }
            else if(neighbourVertex.getPosition().getX() < currentStreetTile.getPosition().getX() && getSelf().getPosition().getZ() < currentStreetTile.getPosition().getZ())
            {
                setHeading(new Vector3f(-1, 0, 0));
                currentGoalPos = neighbourVertex.getPosition();
                currentGoalDegree = streetGraph.degreeOf(neighbourVertex);
                Vector3f laneCenteredPosition = new Vector3f(getSelf().getPosition().getX(), getSelf().getPosition().getY(), currentStreetTile.getPosition().getZ() - 5);
                getSelf().setPosition(laneCenteredPosition);
                currentGoalTile = neighbourVertex;
            }
            else if(neighbourVertex.getPosition().getZ() > currentStreetTile.getPosition().getZ() && getSelf().getPosition().getX() < currentStreetTile.getPosition().getX())
            {
                setHeading(new Vector3f(0, 0, 1));
                currentGoalPos = neighbourVertex.getPosition();
                currentGoalDegree = streetGraph.degreeOf(neighbourVertex);
                Vector3f laneCenteredPosition = new Vector3f(currentStreetTile.getPosition().getX() - 5, getSelf().getPosition().getY(), getSelf().getPosition().getZ());
                getSelf().setPosition(laneCenteredPosition);
                currentGoalTile = neighbourVertex;
            }
            else if(neighbourVertex.getPosition().getZ() < currentStreetTile.getPosition().getZ() && getSelf().getPosition().getX() > currentStreetTile.getPosition().getX())
            {
                setHeading(new Vector3f(0, 0, -1));
                currentGoalPos = neighbourVertex.getPosition();
                currentGoalDegree = streetGraph.degreeOf(neighbourVertex);
                Vector3f laneCenteredPosition = new Vector3f(currentStreetTile.getPosition().getX() + 5, getSelf().getPosition().getY(), getSelf().getPosition().getZ());
                getSelf().setPosition(laneCenteredPosition);
                currentGoalTile = neighbourVertex;
            }
        }

    }

    public boolean collidesWithOtherVehicles(Vector3f nextPosition)
    {
        boolean result = false;
        Vector3f direction = nextPosition.subtract(self.getPosition()).normalizeLocal();
        for(AgentState v : agents.values())
        {
            if(v.contains2D(nextPosition.add(direction.mult(CAR_OFFSET+2))))
            {
                result = true;
                break;
            }
        }
        return result;
    }


    @Override
    public void addEventsThisTick(CombinedReasonedData arg0)
    {

    }

    @Override
    public void clearPerceptionKnowledge()
    {
        agents.clear();
    }

    @Override
    public EventKnowledge getEventKnowledgeByName(String arg0)
    {
        return null;
    }

    @Override
    public List<EventPropertyKnowledge> getEventKnowledgeFromType(String arg0)
    {
        return null;
    }

    @Override
    public List<CombinedReasonedData> getEventsThisTick()
    {
        return null;
    }

    public Vector3f getHeading()
    {
        return heading;
    }

    public void setHeading(Vector3f heading)
    {
        this.heading = heading;
    }

    public Vector3f getPreviousHeading()
    {
        return previousHeading;
    }

    public void setPreviousHeading(Vector3f previousHeading)
    {
        this.previousHeading = previousHeading;
    }

    public float getxMargin()
    {
        return xMargin;
    }

    public void setxMargin(float xMargin)
    {
        this.xMargin = xMargin;
    }

    public float getzMargin()
    {
        return zMargin;
    }

    public void setzMargin(float zMargin)
    {
        this.zMargin = zMargin;
    }

    public int getCurrentGoalDegree()
    {
        return currentGoalDegree;
    }

    public EnvObjectState getCurrentStreetTile()
    {
        return currentStreetTile;
    }

    public Goal getFinalGoal()
    {
        return finalGoal;
    }

    public void setFinalGoal(Goal finalGoal)
    {
        this.finalGoal = finalGoal;
    }

    public int getWaitTime()
    {
        return waitTime;
    }

    public void setWaitTime(int stopTime)
    {
        this.waitTime = stopTime;
    }
}
